STRUCTURE-LINE

SL RATTAN 20 Silver

Product characteristics Processing

Detail of silver mirrored and textured surface in rattan look

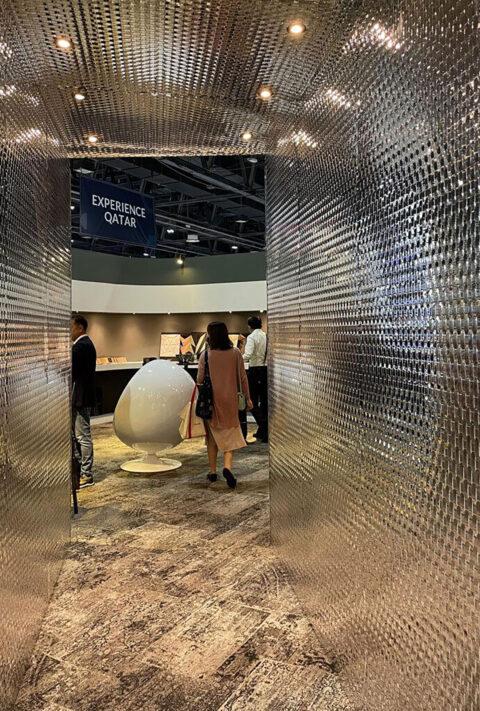

Silber spiegelnder Durchgang in Rattanoptik — Product: SL RATTAN 20 Silver; Photo: Wolrd of Art

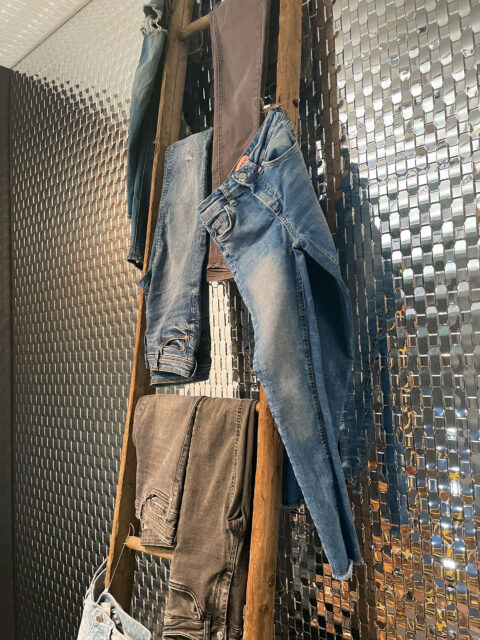

Shopwindow jeans hanging on a ladder with reflective rattan look mirrored textured panel behind it — Product: SL RATTAN 20 Silver

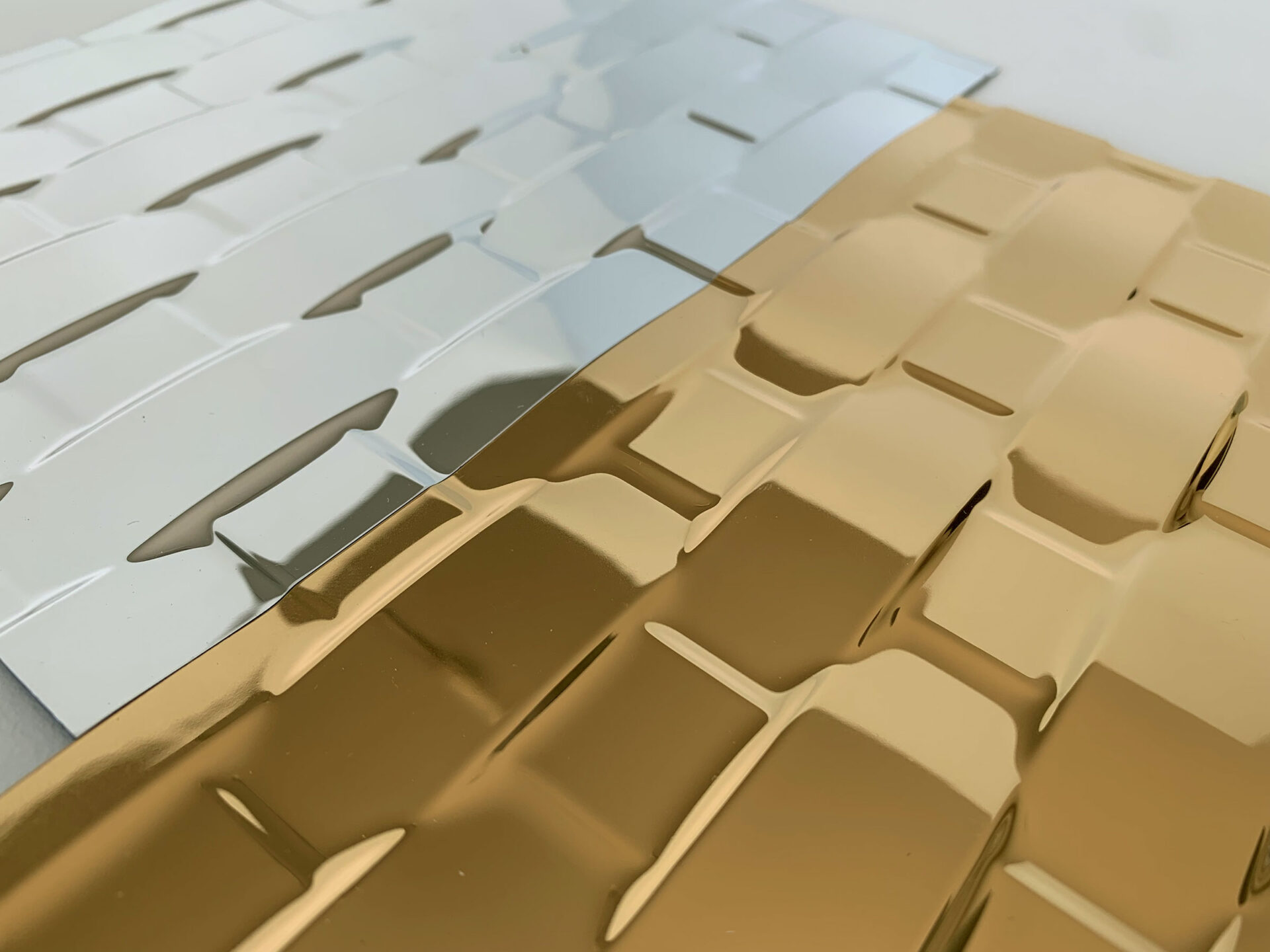

silver and gold glossy finish of the decor SL RATTAN 20 — Products: SL RATTAN 20 Silver & Gold

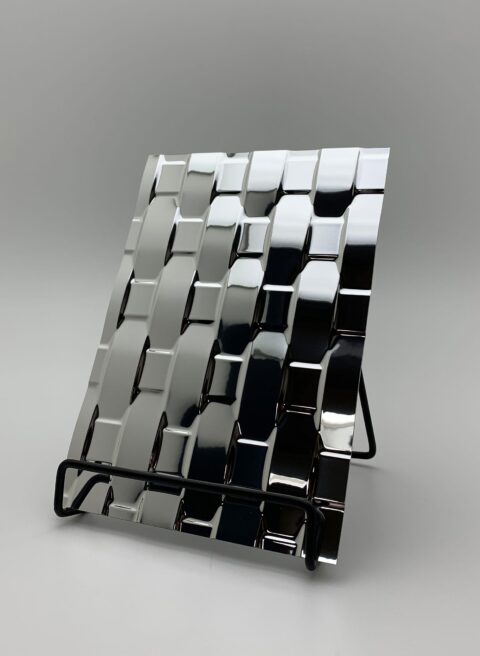

Detailed picture in A5 size of the structured decor SL RATTAN 20 Silver — Product: SL RATTAN 20 Silver

Detail photo with ruler of the decor SL RATTAN 20 Silver — Product: SL RATTAN 20 Silver

Modern shop window with bright mannequins in winter clothing

STRUCTURE-LINE

More structure for furniture and walls: harmonious colours and unique designs of our STRUCTURE-LINE make every surface an eye-catcher and unleash threedimensional effects. Whether rattan, wood or concrete look - these design panels provide a special kind of visual and haptic experience.

Product characteristics
SL RATTAN 20 Silver

Colour variants

Detail of gold mirrored and textured surface in rattan look — SL RATTAN 20 Gold

Detail of black matte and textured surface in rattan look — SL RATTAN 20 Graphite Black matt

Detail of a white textured surface in rattan look — SL RATTAN 20 Snow White matt

Panel photo

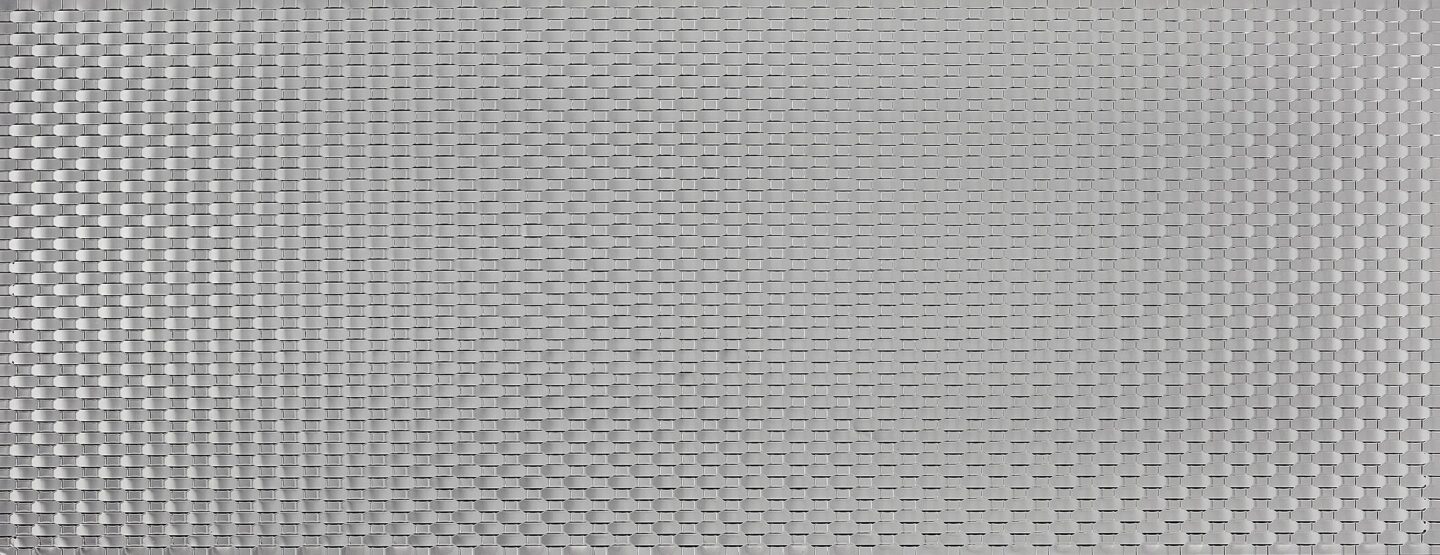

Full plate photo of a mirrored silver rattan look decorative plate

Product characteristics

Product characteristic

non adhesive (NA)

self adhesive (SA)

Item number

24922

24956

Format

2600x1000x2,4 mm

2600x1000x2,64 mm

Surface material

PET

Base material

HIPS

Back side material

Adhesive Layer

Material thickness mm

0,8 mm

1,04 mm

Max. relief height in mm

2,4 mm

2,64 mm

Temperature stability in °C

up to 50 °C

Wet room suitability

Abrasion Resistance

Rolled packable Box ( 480x480 mm)<br />
After receipt, rolled goods should be laid out flat for around 24 hours at room temperature and if necessary, subjected to additional weight.

Smallest bending radius

150 mm

Weight in kg / piece

2,2

2,8

Pattern Gradient

Please consider the design course

Flammability

DIN 4102 - B2

Machine-related dimensional and angle tolerances

+/- 2.0 mm in relation to 1,000 mm

Temperature-related dimensional deviations

+/- 0.7mm to 1,000 mm at temperatur change of 10°C

Protection foil

GTIN-Code

9002582249229

9002582249564

Customs tariff number

39219090

39199080

Processing

non adhesive (NA)

self adhesive (SA)

Cutting

Punching

Drilling

Sawing

Milling

Laser cutting

Hot bending

PVA compressible

Digital printing

Screen printing

Not possible

Extra equipment

non adhesive (NA)

self adhesive (SA)

Special formats

Further thicknesses

Cuttings

Magnetic available

PVA treatment orderable

Special colors

On request

Further variants

EN13501-1 Flammability orderable

ASTM E84 Flammability orderable

Accessories

non adhesive (NA)

self adhesive (SA)

Glue recommendation

Putty adhesive with toothed spatula A2

not necessary

Matching Edges

Matching Profiles

Balance Sheet

HIPS white grained (Itemno.25877) 2610x1010 mm

not necessary

Cleaning

Do not use abrasive cleaners, solvent cleaners or pure alcohol! In case of light dirt by means of soft cleaning cloth (it should be free of dust and free of dirt). In case of heavy dirt by means of standard plastic or window cleaner (spray cleaners not onto the material surface, but sparingly onto the cleaning cloth).
