DECO-LINE Display

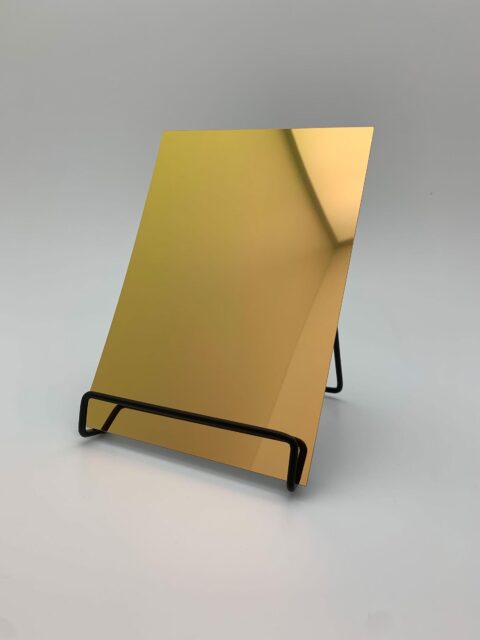

DM OPTICAL MIRROR Gold AR
DECO-LINE Display
Product characteristics
DM OPTICAL MIRROR Gold AR
Colour variants
Product characteristics
Product characteristic
non adhesive (NA)
Item number
21243
Format
2800x1250x1 mm
Surface material
PET
Base material
HIPS
Material thickness mm
1 mm
Max. relief height in mm
1 mm
Temperature stability in °C
up to 50 °C
Wet room suitability
Abrasion Resistance
Rolled packable
Smallest bending radius
150 mm
Weight in kg / piece
3,65
Pattern Gradient
No design course
Flammability
DIN 4102 - B2
Machine-related dimensional and angle tolerances
+/- 2.0 mm in relation to 1,000 mm
Temperature-related dimensional deviations
+/- 0.7mm to 1,000 mm at temperatur change of 10°C
Protection foil
GTIN-Code
9002582212438
Customs tariff number
39219090
Processing
Processing
non adhesive (NA)
Cutting
Punching
Drilling
Sawing
Milling
Laser cutting
Hot bending
Thermoforming
PVA compressible
Digital printing
Screen printing
Extra equipment
Extra equipment
non adhesive (NA)
Special formats
On request
Maximum length
3000 mm
Further thicknesses
Cuttings
Magnetic available
PVA treatment orderable
Special colors
Further variants
EN13501-1 Flammability orderable
ASTM E84 Flammability orderable
Accessories
Accessories
non adhesive (NA)
Glue recommendation
no recommendation
Matching Edges
Matching Profiles
Balance Sheet
HIPS white grained (Itemno. 25878) 2800x1250 mm
Cleaning
Do not use abrasive cleaners, solvent cleaners or pure alcohol! In case of light dirt by means of soft cleaning cloth (it should be free of dust and free of dirt). In case of heavy dirt by means of standard plastic or window cleaner (spray cleaners not onto the material surface, but sparingly onto the cleaning cloth).
Processing guidelines
Please refer to the technical tables to see whether the respective processing is possible.
The interactive table is only available on the desktop. Please view this page on a desktop PC.
Product group
Base Material
Variation
Expansion joint
Processing
DECO-LINE Display (DM)
absorbent
plasterboard, smoothed brickwork, raw MDF or chipboard etc.
NA
non-adhesive design sheet
Glutolin UK, Bostik Ardaflex® Multi (tooth spatula A2, B3)
putty adhesive
PVA Glue Pressing
PVA pre-treatment is necessary. Balancing sheet and PVA pre-treatment are avaliable at SIBU or roughering by means of sandpaper
non-absorbent
Glass, coated MDF, etc.
SA
self-adhesive design sheet
Processing
DM OPTICAL MIRROR Gold AR
