STRUCTURE-LINE
SL OCEAN Hollywood
STRUCTURE-LINE
Product characteristics
SL OCEAN Hollywood
Colour variants

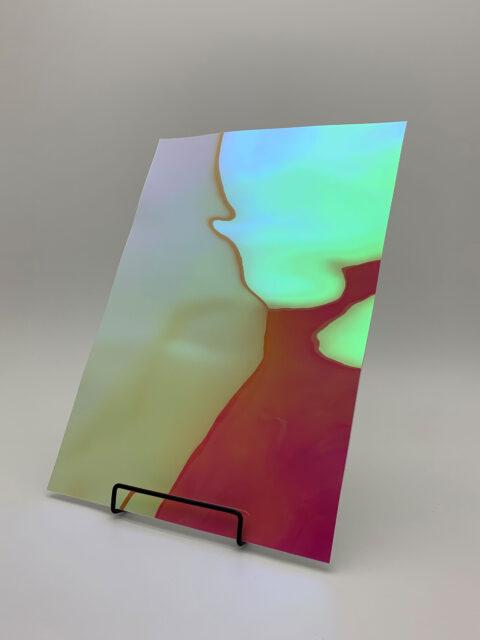

Panel photo
Product characteristics
Product characteristic
non adhesive (NA)
self adhesive (SA)
Item number
25671
27048
Format
2600x1000x8 mm
2600x1000x8,24 mm
Surface material
PET
PET
Base material
HIPS
HIPS
Back side material
Adhesive Layer
Material thickness mm
2 mm
2,24 mm
Max. relief height in mm
8 mm
8,24 mm
Temperature stability in °C
up to 50 °C
up to 50 °C
Wet room suitability
Abrasion Resistance
Rolled packable
Smallest bending radius
1000 mm
1000 mm
Weight in kg / piece
5,6
6,2
Pattern Gradient
Please consider the design course
Please consider the design course
Flammability
DIN 4102 - B2
DIN 4102 - B2
Machine-related dimensional and angle tolerances
+/- 2.0 mm in relation to 1,000 mm
+/- 2.0 mm in relation to 1,000 mm
Temperature-related dimensional deviations
+/- 0.7mm to 1,000 mm at temperatur change of 10°C
+/- 0.7mm to 1,000 mm at temperatur change of 10°C
Protection foil
GTIN-Code
9002582256715
9002582270483
Customs tariff number
39219090
39199080
Processing
Processing
non adhesive (NA)
self adhesive (SA)
Cutting
Punching
Drilling
Sawing
Milling
Laser cutting
Hot bending
PVA compressible
Digital printing
Screen printing
Not possible
Not possible
Extra equipment
Extra equipment
non adhesive (NA)
self adhesive (SA)
Special formats
Further thicknesses
Cuttings
Magnetic available
PVA treatment orderable
Special colors
Further variants
DECO-LINE
DECO-LINE
EN13501-1 Flammability orderable
ASTM E84 Flammability orderable
Accessories
Accessories
non adhesive (NA)
self adhesive (SA)
Glue recommendation
Putty adhesive with toothed spatula B3 / MS polymer hybrid adhesives (cartouche)
not necessary
Matching Edges
Matching Profiles
Cleaning
Do not use abrasive cleaners, solvent cleaners or pure alcohol! In case of light dirt by means of soft cleaning cloth (it should be free of dust and free of dirt). In case of heavy dirt by means of standard plastic or window cleaner (spray cleaners not onto the material surface, but sparingly onto the cleaning cloth).
Additional Info
Due to the pattern, mechanical assembly (screws, spacers) is generally recommended. Applications in the ceiling area must be attached mechanically.
Processing
SL OCEAN Hollywood
Processing information SL OCEAN
Due to the pattern, mechanical assembly (screws, spacers) is generally recommended. Applications in the ceiling area must be attached mechanically.
Downloads
Processing information SL OCEAN [185 KB]
